Astral In-Ground Standard Vinyl Skimmer, Parts List

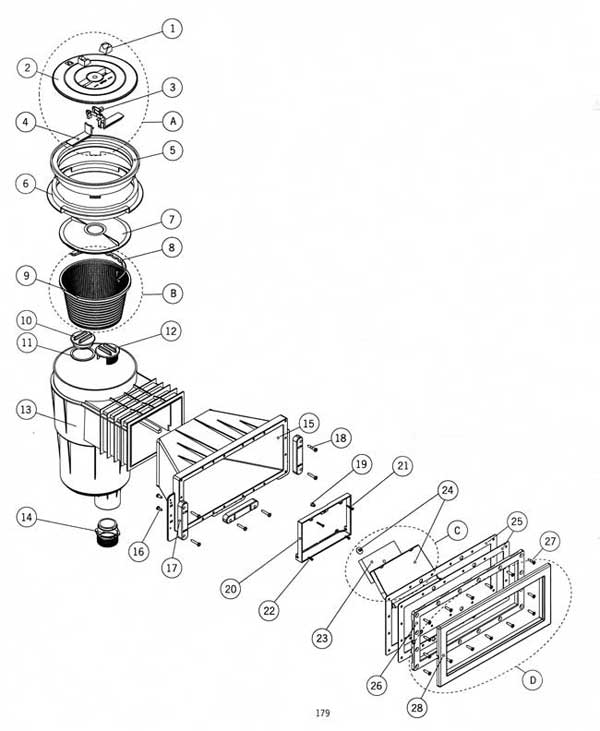

Astral In-Ground Standard Vinyl Skimmer, Parts Diagram
Astral Models 28884
Astral In-Ground Standard Vinyl Skimmer Parts List
Astral Models 28884
| Key | Model | Description | Product ID | Buy Me |
|---|---|---|---|---|
| A | 05280R0300 | Lid Kit | SK-17050 | |
| B | 05280R0400 | Basket Kit | SK-17052 | |
| C | 05280R0200 | Weir Kit | SK-17048 | |
| D | 28884R0200 | Flace Plate Plus Screws | NLA | -- |
| 1 | 05280R0303 | Support, Lock Tab | SK-17130 | |
| 2 | 05280R0301 | Lock Down Lid | NLA | -- |
| 3 | 05280R0304 | Deck Lid, Locking Spring | SK-17136 | |
| 4 | 05280R0302 | Lid Lock Tabs | NLA | -- |
| 5 | 05280R0002 | Lid Collar | SK-17032 | |
| 6 | 05280R0001 | Deck Collar | SK-17030 | |
| 7 | 05280R0003 | Vacuum Plate | SK-17034 | |
| 8 | 05280r0402 | Basket Handle | NLA | -- |
| 9 | 05280R0401 | Basket | NLA | -- |
| 10 | 05280R0005 | Two Inch Plug | SK-17038 | |
| 11 | 05280R0007 | Flat Gasket | SK-17040 | |
| 12 | 0528R0004 | Regulation Plug | NLA | -- |
| 13 | 06597R0001 | Body | NLA | -- |
| 14 | 07455R0101 | Connection Fitting | SK-17139 | |
| 15 | 28884R0001 | Wide Mouth For Vinyl Skimmer | NLA | -- |
| 16 | 7011455016 | Screw A2 5.5 x 16 | SK-17153 | |
| 17 | 28883R0002 | Adjustment Blocks | SK-17145 | |
| 18 | 7011455032 | Screw A2 5.5 x 32 | NLA | -- |
| 19 | 05280R0105 | Weir Bumper Pad | SK-17045 | |
| 20 | 05280R0102 | Weir Support | SK-17042 | |
| 21 | 70114R39025 | Screw A2 3.9 x 25 | SK-17234 | |
| 22 | 70114R39016 | Screw A2 3.9 x 16 | SK-17231 | |
| 23 | 05280R0203 | Weir Float | NLA | -- |
| 24 | 05280R0201 | Weir | NLA | -- |
| 25 | RS-17 | Gasket | SK-17453 | |
| 26 | RS-18 | Sealing Frame | SK-17054 | |
| 27 | 7015R55025 | Screw A2 5.5 x 25 | NLA | -- |
| 28 | RS-19 | Face Plate | SK-17459 | |
| Terms: | NLA = No Longer Availble. | |||
| DS = Drop Shipped, Cannot be combined with any other Items. | ||||
| OS=Cannot Ship UPS & Cannot be combined with other items | ||||
Notice / Important: When adding items to the shopping cart from this page, please make sure that the item added is the same as listed on this page. Occasionally part numbers will change and will not be reflected on this page
