Astral Above Ground Standard Vinyl Skimmer Parts List

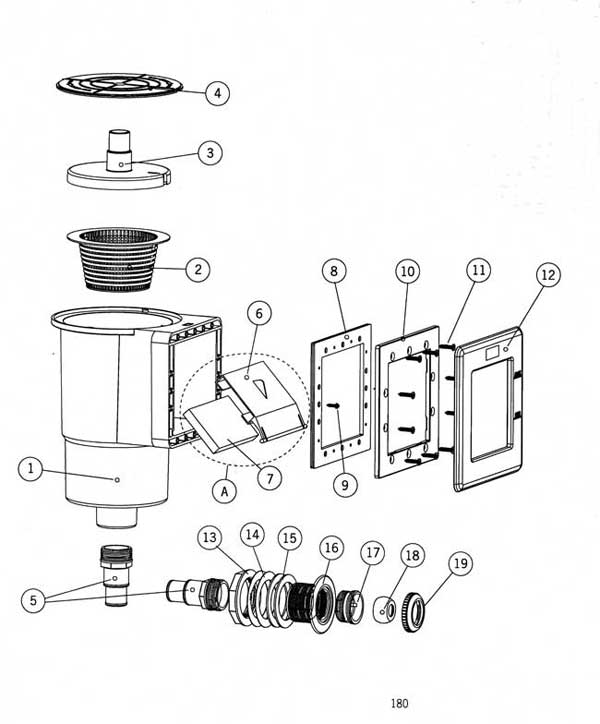

Astral Above Ground Standard Vinyl Skimmer Parts Diagram
Astral Models 20889 Parts List
Astral Above Ground Standard Vinyl Skimmer Parts List
Astral Models 20889 Parts List
| Key | Model | Description | Product ID | Buy Me |
|---|---|---|---|---|
| A | 20888R0100 | Weir Kit | SK-17115 | |
| 1 | 20888R0001 | Body | NA | |
| 2 | 20888R0003 | Basket Plus Handle | SK-17103 | |
| 3 | 20888R0200 | Vacuum Plate | SK-17118 | |
| 4 | 20888R0002 | Lock Down Lid | SK-17100 | |
| 5 | 20888R0004 | Hose Adapter | SK-17245 | |
| 6 | 20888R0101 | Weir | NA | |
| 7 | 20888R0102 | Weir Float | NA | |
| 8 | 20888R0005 | Gasket | SK-17106 | |
| 9 | 70114R42016 | Screw A2 4.2 x 16 | SK-17247 | |
| 10 | 20888R0006 | Sealing Frame | SK-17109 | |
| 11 | 70114R55025 | Screw A2 5.5 x 25 | NA | |
| 12 | 20888R0009 | Face Plate | SK-17112 | |
| 13 | 20893R0004 | Two Inch Nut | SK-17121 | |
| 14 | 09928R0008 | Friction O-Ring | NA | |
| 15 | 04051R0003 | Flat Gasket | NA | |
| 16 | 17239R0001 | Base Fitting | SK-17249 | |
| 17 | 20893R0001 | Ball Seat | SK-17251 | |
| 18 | 20893R0002 | EyeBall | SK-17255 | |
| 19 | 20893R0003 | Retainer Ring | -- | -- |
| Terms: | NLA = No Longer Availble. | |||
| DS = Drop Shipped, Cannot be combined with any other Items. | ||||
| OS=Cannot Ship UPS & Cannot be combined with other items | ||||
Notice / Important: When adding items to the shopping cart from this page, please make sure that the item added is the same as listed on this page. Occasionally part numbers will change and will not be reflected on this page
