Astral RapidPool Filter Parts List, 26 Inch

Astral RapidPool Filter Parts List, 26 Inch

Astral Rapid Model 00490-0100

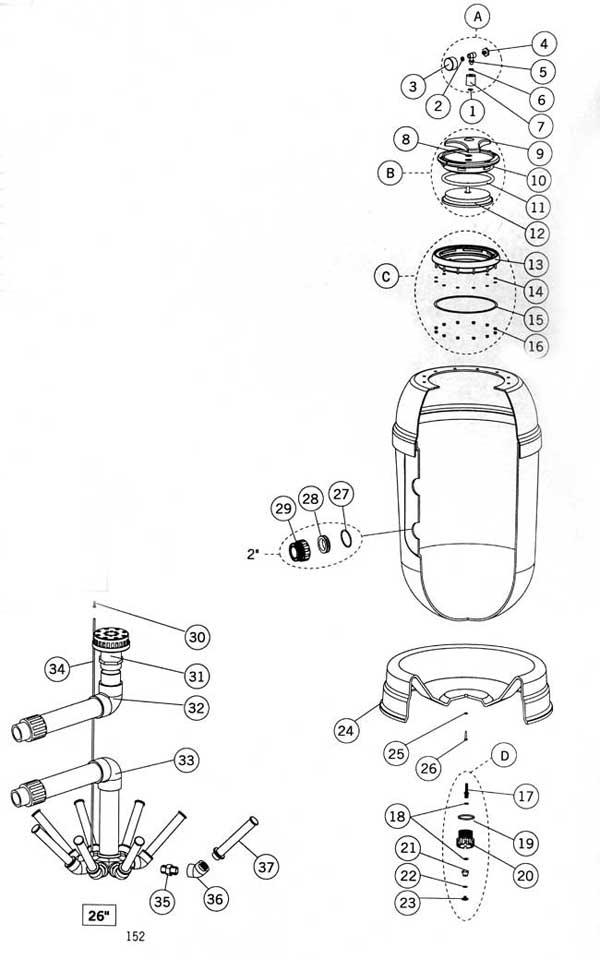

Astral Rapid Pool Filter Parts Diagram

Astral RapidPool Filter Daigram List, 26 Inch

Astral Rapid Model 00490-0100

Key Model Description Product ID Buy Me
A 4404020101 Pressure Gauge Kit FI-17032
B 00497R5000 Lid Kit (4404020102) NLA --
C 00497R7000 Clamp Set Kit (4404020102) NLA --
D 00496R0500 Water Drain NLA --
1 773R0070020 Plug Gasket NLA --
2 773R0070020 Plug Gasket NLA --
3 08077R0503 Pressure Gauge, 1/8 Inch NLA --
4 074065008A Air Relief Valve PU-17080
5 00555R0401 Tee Adaptor FI-17047
6 00470R0319 Flat Gasket FI-17049
7 00496R0901 Support Air Relief NLA --
8 70119R1200 Washer, Stainless NLA --
9 00496R0700 Lid Cap Key NLA --
10 00496R0907 Support Lid NLA --
11 74017R00120 O-Ring Lid FI-17153
12 00496R0800 Lid NLA --
13 00497R7002 O-Ring Collar NLA --
14 70120R06000 Inox Gasket NLA --
15 722R2550040 Plug Gasket NLA --
16 70122R06000 Nut FI-17057
17 00496R0501 Water Drain Set FI-17087
18 723R0100040 Gasket NLA --
19 723R00065 O-Ring NLA --
20 00496R0401 Cap NLA --
21 00496R0502 Sand Drain Cap FI-17089
22 724R0130030 Gasket FI-17091
23 024030092A Water Drain Plug FI-17090
24 00557R0102 Base NLA --
25 72139R0700 Washer, Stainless NLA --
26 72142R06032 Bolt for Base NLA --
27 723R0650060 O-Ring NLA --
28 00496R1000 Casket NLA --
29 00496R0316 Union Nut NLA --
30 00497R0411 Air Relief Valve FI-17015
31 04960R0414 Above Diffuser NLA --
32 28303R0411 Air Relief Valve NLA --
33 00490R0602 Collector Assembly NLA --
34 10001R0432 Air Relief Tube NLA --
35 02114 Coupling NLA --
36 01770 Elbow NLA --
37 06435 Lateral Arm, 8-7/8 Inches NLA --

Terms: NLA = No Longer Availble.
DS = Drop Shipped, Cannot be combined with any other Items.
OS=Cannot Ship UPS & Cannot be combined with other items
