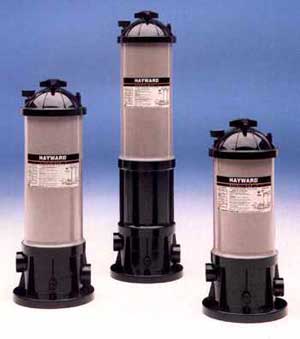

Star-Clear II Cartridge Filter
Star-Clear II Cartridge Filter
Star-Clear II Cartridge Filter Features
Single locking knob, securely fastens filter head to tank, and still allows fast access to the cartridge to allow cleaning.
Filter Head. Easily rotate able to allow position of the pressure gauge, for viewing. Has pressure relief valve to safety.
Heavy Duty Tank filter. Injected molded of Duralon for dependable corrosion-free performance.
Automatic Air Relief. Purges trap air automatically during filter operation.
Cartridge element is engineered of high quality reinforced polyester, with gasket molded end caps for maximum efficiency, easier cleaning and longer life.
1/2" filter drain valve provides fast draining for elevated spas and tubs.
Available in 3 sizes. 75, 100 & 150 sq-ft.
Star-Clear II Cartridge Filter Specifications
| Model Number | Effective Filtration Area |
Design Flow Rate |
Turnover 8 hours gallons |
| C-800 | 75 sq -ft | 75 gpm | 36,000 |
| C-1100 | 100 sq-ft | 100 gpm | 48,000 |
| C-1500 | 150 sq-ft | 150 gpm* | 72,000 |
Part Numbers and Purchasing
Star-Clear II Cartridge Filter Pricing
| SKU # | Description | Model | Buy Me |
| FI-05508 | Hayward C800, Star-Clear II Cartridge Filter, See C900 as a Replacement | C-800 | NLA |
| FI-05516 | Hayward Star-Clear II Cartridge Filter Model C11002, Replaced by C12002 | C-1100 | NLA |
| Hayward Star-Clear II Cartridge Filter Model C15002, Replaced by C175002 | C-1500 | NLA |
