Astral Compact Pool Pump Parts List
Home - > Parts Diagrams -> Astral Parts Diagrams -> Astral Pumps-> Astral Compact Pool-Pump

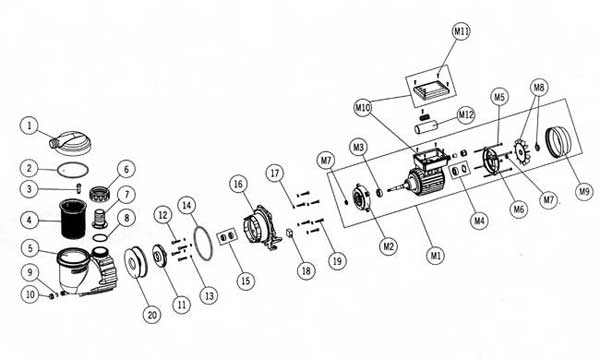

Astral Compact Pool Pump Parts Diagram
Astral Compact Pool Pump Parts List
| Key | Model | Description | Product ID | Buy Me |
|---|---|---|---|---|
| 1 | 25470R0101 | Strainer Lid | PU-17092 | |
| 2 | 77A1180040 | Strainer Lid O-Ring | PU-17006 | |
| 3 | 25470R0205 | Basket Handle | NLA | -- |
| 4 | 24561R0202 | Basket | PU-18042 | |
| 5 | 25470R0203 | Pump Housing | PU-17094 | |
| 6 | 02193 | Hose Union Nut | PU-17349 | |
| 7 | 02214 | Union | NLA | -- |
| 8 | 773R0540025 | Gasket | NLA | -- |
| 9 | 773R0540025 | Drain Plug O-Ring | NLA | -- |
| 10 | 25470R0103 | Drain Plug | PU-17096 | |
| 11 | 25470R0712 | 3/4 HP Impeller | PU-17097 | |
| 11 | 25471R0712 | 1 HP Impeller | PU-17098 | |
| 12 | 70207R06030 | Screw, Difusser, 4 Required | PU-17099 | |
| 13 | 773R0060018 | Washer, 4 Required | PU-17100 | |
| 14 | 773R1340050 | O-Ring Housing | PU-17101 | |
| 15 | 25470R9601 | Seal D12 | PU-17102 | |
| 16 | 25470R0003 | Difusser Clamp Pump Base | NLA | -- |
| 17 | 70119R0600 | Washer, 6 Required | PU-17093 | |
| 18 | 25470R0005 | Silent Block | PU-17104 | |
| 19 | 7015006032 | Screw Clamp, Pump Base | PU-17105 | |
| 20 | 25470R0004 | Suction Guide | PU-17106 | |
| M1 | 27461R0475 | Motor, 3/4 HP | NLA | -- |
| M1 | 27462R0475 | Motor, 1 HP | NLA | -- |
| M2 | 25470R0113 | Foot Flange | NLA | -- |
| M3 | -- | Ball Bearings | NLA | -- |
| M4 | 25470R0111 | Ball Bearings Plus Antivibration Washer | MO-00008 | |
| M5 | 20597R0109 | Bolt Motor | PU-17110 | |
| M6 | 25470R0104 | Rear Shield | PU-17109 | |
| M7 | 25470R0477 | O-Ring | PU-17108 | |
| M8 | 20597R0105 | Fan | MO-00009 | |
| M9 | 20597R0106 | Fan Cover | MO-00010 | |
| M10 | 25470R0108 | Terminal Box | NLA | |
| M11 | 20597R0133 | Terminal Box Screw | NLA | |
| M12 | 27461R0129 | Capacitor 35 F, 250 Volts 50/60 HZ | MO-00012 | |
| NLA = No Longer Availble. | ||||
| DS = Drop Shipped, Cannot be combined with any other Items | ||||
| OS=Cannot Ship UPS & Cannot be combined with other items | ||||
